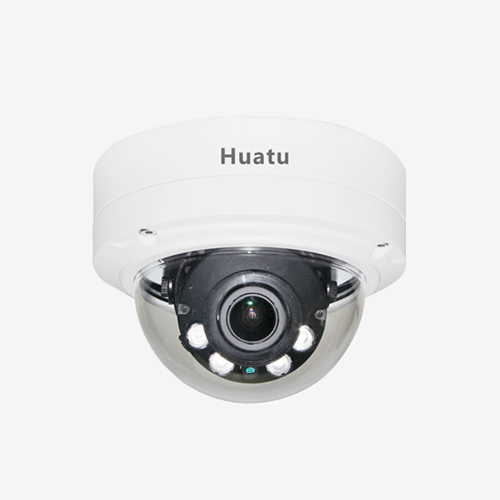

12 Megapixel Dome IP Camera
Model:HTIP16-H6SCJ Series
• UP to 12 megapixel resolution(4000*3000)
• Max 20fps@12MP(4000*3000), 30fps@4K(3840*2160)
• H.265 MainProfile, H.264Baseline/MainProfile/HighProfile
• Day/Night(ICR)&3D DNR&AWB&AGC&BLC
Application Areas:
Suitable for Financial,Traffic,Government,Schools,Airports,Factories,Hotels and other places which need high-definition video surveillance.
Order Models:
HTIP16-H6SCJZG-AEJF（Manually varifocal-lens, fixed iris）
HTIP16-H6SCJAG-AEJF（Manually varifocal-lens, auto iris )
HTIP16-H6SCJMG-AEJF（Motorized-lens, fixed iris）
HTIP16-H6SCJNG-AEJF（Motorized-lens, auto iris）
Camera | |
Media Processor | High-performance Hisilicon DSP |
Image Sensor | 1/1.7” 12MP progressive scan CMOS |
Shuttle time | 1/5s to 1/50,000s |
Min IIIumination | Color：0.01 Lux /F1.4 B/W：0.001 Lux / F1.4;0Lux IR On |
Lens | 3.6~11mm |
Motorized-Lens | 3.6~11mm lens with AF optional |
IR Range | Up to 20m |
Day&Night | IR cut filter with auto switch |
Compression | |
Video Compression | H.265/H.264/MJPEG |
Coding standard | H.265 MainProfile,H.264Baseline/MainProfile/HighProfile, |
Audio Compression | G.711a/G.711u |
Audio Bit Rate | G.711a(8kbps)/G.711u(8kbps) |
Image | |
Max Image Size | 4000(H)×3000(V) |
Stream | Dual-stream |
Frame Rate | Main Stream : 20fps @(4000*3000）,30fps @(3840*2160） |
Network | |
Alarm Trigger | Motion detection |
Protocols | IPv4/IPv6、RTSP/RTP/RTCP、TCP/UDP、HTTP、DHCP、DNS、FTP、DDNS、PPPoE、SMTP、QOS、Onvif |
Onvif | V2.6.1/Profile S |
Browser | IE(8、9、10、11),Chrome,Firefox,Safaribetc,etc |
Software Development Kit | Linux/Windows C++/C SDK |
Interface | |
Memory Slot | Mico SD, max up to128G for local storage |
Audio In | 1-channel |
Audio Out | 1-channel |
Alarm | 1 In/1 Out |
Video Out | 1 ch analog |
Network | 1 RJ45 10M/100M adaptive Ethernet port |
Reset | A reset button (press and hold 3 seconds valid) |
General Specifications | |
Operating Conditions | -40℃ ~ 60℃,humidty less than 95% |
Power Supply | DC12V±10%,PoE (802.3af) |
Power Consumption | 6W |
Weather proof rating | IP66 |
Dimensions(mm) | φ137×99 |
Weight(kg) | 0.8 |
