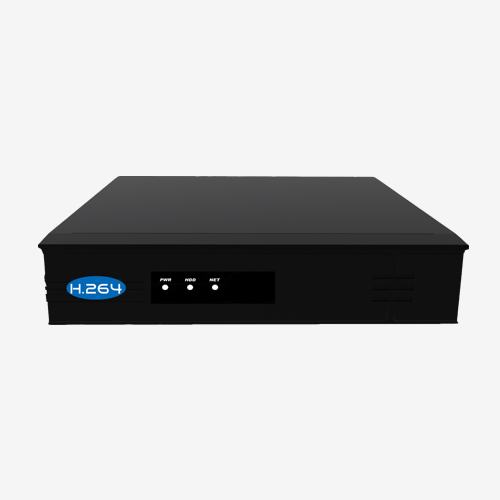

H.264 16CH NVR with 1-SATA 8-PoE
• H.264/MJPEG-4 decoding
• 16 channels IP camera input
• Support 16ch synchronous playback
• Support 1 SATA HDD(no limited)
• Support HDMI&VAG&CVBS interface
• Support Audio function
• Support Onvif 2.4 protocol
• Support mobile monitoring, P2P
| Chipset | Hi3535 |
| RAM | 512MB |
| OS | Embedded Linux |
| Incoming bandwidth | 128Mbps |
| Outgoing bandwidth | 64Mbps |
| IPC Input | 16CH |
| Video&Audio output | CVBS | 1CH,BNC(1.0Vp-p,75ohms) |
| VGA | 1CH,1920×1080,1280×1024,1280×720,1024×768 |
| HDMI | Standard 1.3a |
| 1920×1080,1280×1024,1280×720,1024×768 |
| Audio Output | 1CH,BNC(Line out,2Vpp,300ohms) |
| Video&Audio encoding | Audio Compression | G.711A |
| Audio Bit Rate | 64Kbps |
| Video&Audio decoding | IP channel Resolution | Main stream:Up to 5632×4224 Auxiliary stream:D1 |
| Video decoding | MPEG-4/H.264(Up to High Profile@Level5.0） |
| Audio decoding | G.711A/G.726 |
| Synchronous Playback | 16CH |
| Decoding Ability | 13CH 720P@30FPS or 6CH 1080P@30FPS |
| Elligent Analysis | 1CH Face detection or 2CH Perimeter detection |
| Up to 1080P |
| Other Function | Bidirectional Talk | Two-way voice intercom function |
| Motion Detection | Zones: 396(22*18),Sensitivity: 1~6 (level 6 is highest) |
| Picture Capture | Support JPEG Capture |
| HDD Interface | SATA | 1 SATA Interface |
| Max Capacity | Unlimited |
| POE Interface | POE Interface | 8CH |
| IEEE 802.3af |
| RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤68W |
| External Interface | Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB | 2 USB2.0 Interfaces |
| Structure | Dimensions | 410*293*60mm |
| Size | 215*235*45mm |
| Weight | 0.9KG(without HDD) |
| Installation | Desktop Installation |
| General | Power Supply | DC 48V 1.875A |
| Working Temperature | 0℃--＋55℃ |
| Working Humidity | 10％--90％ |
| Consumption | 7W(without HDD) |
